New Arriva KW906 car obd2 scanner for universal car Via Bluetooth Android and iOS

The device is a small adapter that plugged into the vehicle OBDII connector via bluetooth, it is suitable for android  and IOS smart phone . With associated diagnostic procedures, Free obd software provided in the package ). With this product, you will be able to perform a complete computer diagnostic car and even to correct minor faults without resorting to service stations.

Main features

- Display real time performance of your car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position and air intake temperature.

- If the communication is terminated, this item will automatically switch to sleep mode in half a hour.

- The adapter adopts fast and reliable chips which promise its stable wireless connection.

- It supports all OBDII protocols: J1850 VPW, J1850 PWM, IS09141 - 2, KWP2000 and CAN

- Small size and compact structure, plug and play.

Protocols :

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

Default settings(user adjustable)

With proper software installed in the host device, you may have following parameters read out from your vehicle:

• Vehicle Speed
• RPM
• Fuel Consumption
• Engine Coolant Temp
• Fuel Pressure
• Calculated Engine Load
• Throttle Position
• Intake Manifold Pressure
• Air Intake Temp
• Timing Advance
• Mass Air Flow
• Fuel Level
• Barometric Pressure
• EVAP System Vapor Pressure
• Fuel Trim

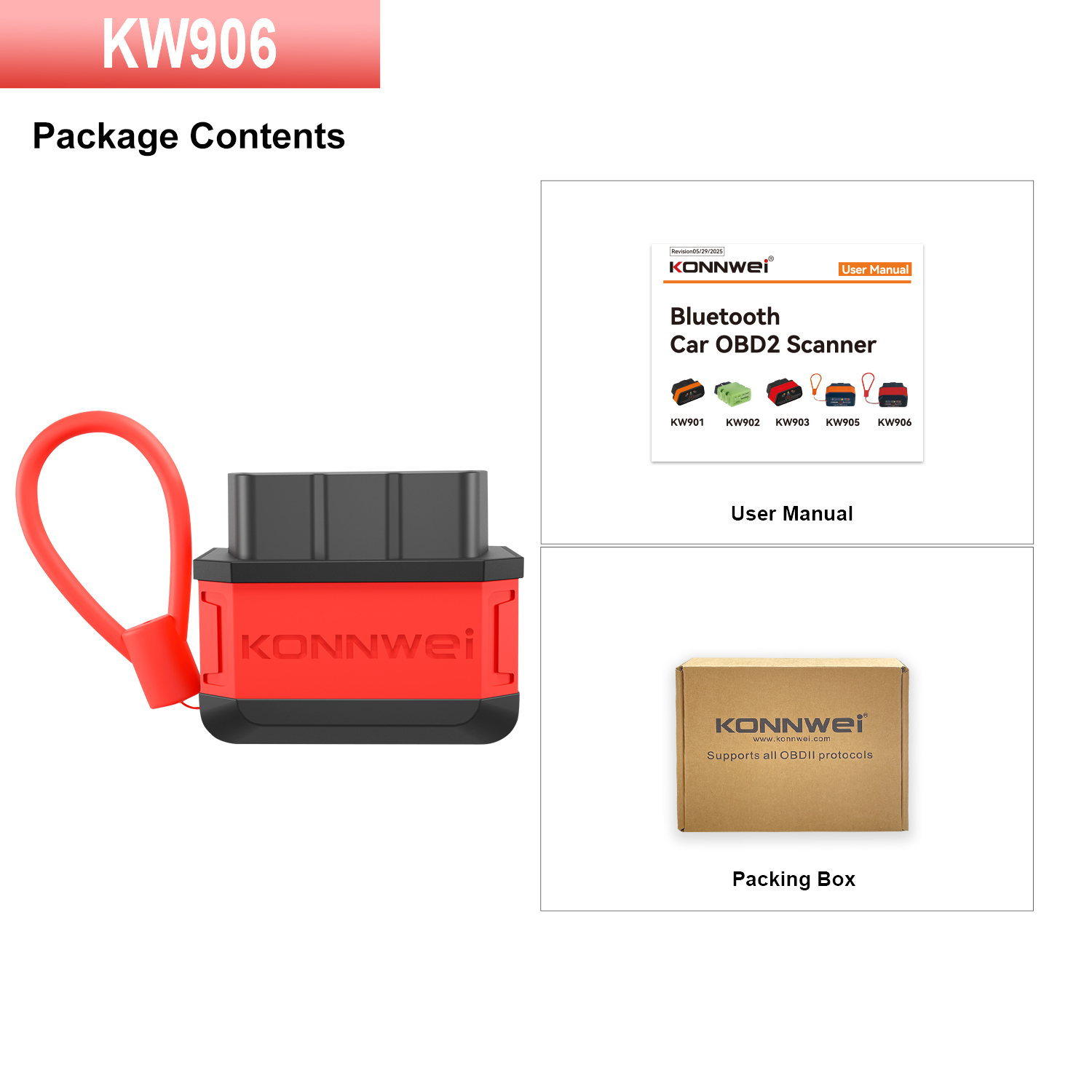

Packing list

1 * KW906 bluetooth 4.0(5.0) obdii scanner

1 * User's manual

1 * BOX
