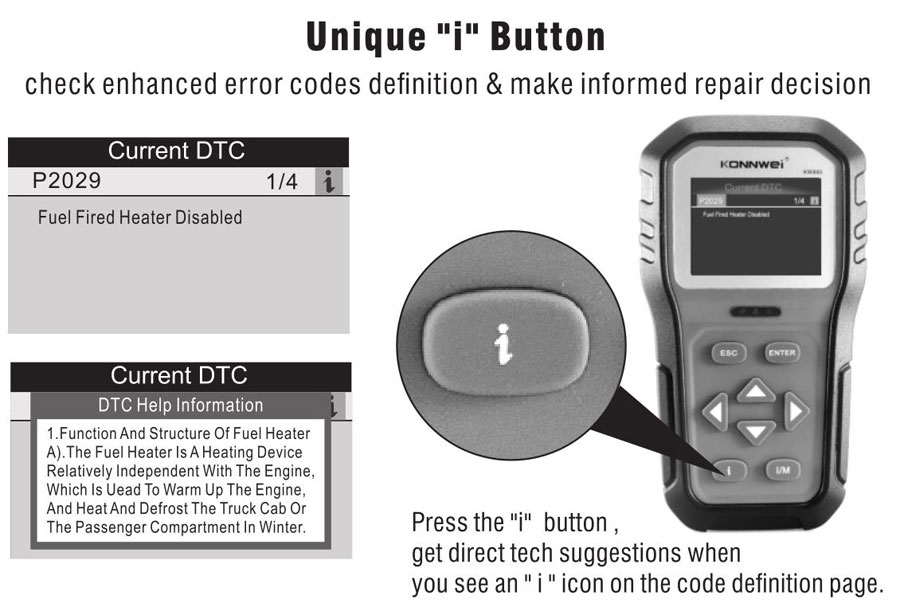

Press the "i"  button , get direct tech suggestions when you see an " i " icon on the code definition page.



Unique "i" Button : check enhanced error codes definition & make informed repair decision





KW860 Works on most 1996 US-based, 2003 EU Based and Asian (OBDII & CAN) domestic and imported vehicles, including passenger cars, SUVs, light trucks, etc. Support all OBDII protocols. Simply plug into the OBD II port on your car, turn the ignition on and you are ready to go. No battery or complicated apps install needed. A look-up library with over 8, 000 built in



in generic code definitions allows you to accurately identify the cause of your CHECK ENGINE and perhaps fix it without going to see your dealer. It also assists you



in easily passing annual emissions tests and SMOG CHECK. It covers full OBDII/ EOBD diagnostic functions for engine system. O2 sensor test, EVAP systems test,



and onboard monitoring test give you full control of your vehicle's running status, while a graphical and numeric live data stream display will help you to find out the faulty



sensor readings. (Please be noticed: this function is for ENGINE System only).





1. Works on ALL OBD II Enabled vehicles, both Gasoline and Diesel cars - domestic and imported.



2. Features the unique patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification.



3. Bright color coded LEDS indicators and built-in speaker provide both visual and audible tone for readiness verification



4. Retrieves generic (P0, P2, P3 and U0), manufacturer specific (P1, P3 and U1) codes and pending codes



5. Easily determines the cause of the Check Engine Light(MIL)



6. Turns off Check Engine Light (MIL), clears codes and resets monitors



7. Enhanced OBD2 Mode 6 On Board Monitoring Test Results for Specific Monitored Systems.



8. Views freeze frame dataThe KONNWEI KW860 OBD2 / EOBD / CAN Car Diagnostic Scanner supports all 10 OBDII test modes on all OBDII compliant vehicles for a complete diagnosis. Featuring the unique patented One-Click I/M Readiness Key, TFT color display and built-in speaker, Real Time Battery Voltage Monitoring, the KONNWEI KW860 is truly the ultimate in power and affordability, allowing users to do their jobs faster.



In addition, thousands of troubleshooter code tips(by press ? button) help technicians and home DIY users to accurately diagnose even the toughest problems. With the newest friendly diagnostic interface, KW860 will be the most useful car diagnostic tool for every family and professional mechanic technician!



9. Displays monitor and I/M readiness status (emissions)



10. Reads live PCM datastream



11. Displays live O2 sensor test data



12. EVAP System test data



13. Live sensor data in text mode and graph mode (1996 and newer vehicles)



14. Reads, stores and playbacks live sensor data



15. Troubleshooter code tips guide technicians to the root cause of a trouble code faster, saving diagnosis and repair time



16. Battery Voltage real time monitoring,better than other expensive item from others brand.



17. Built-in DTC look-up library and display definition.



16. Retrieves vehicle information (VIN, CIN and CVN)



17. Internet updatedable and upgradeable



18. Prints data via PC.

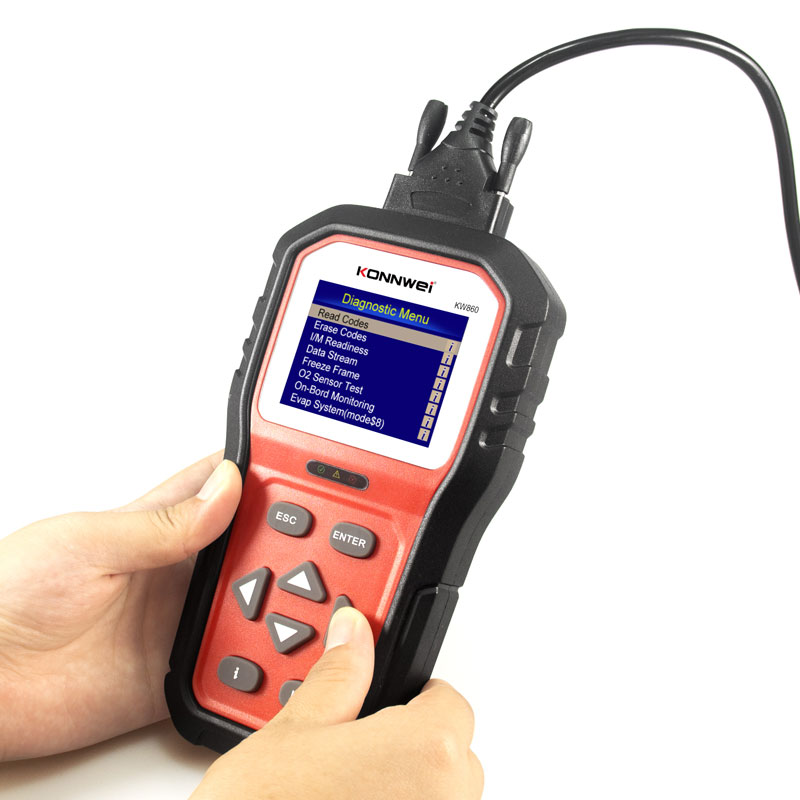

Reason 1. High Quality and High Resolution TFT colorful display helps you easily to find out the troubles of your car.



Reason 2. Bright color coded LEDs and built-in speaker provide both visual and audible tone for readiness verification.



Reaon 3. Brand New design Key pad, unique patented One-Click I/M Readiness Key, it is the best partner for your car repairing.

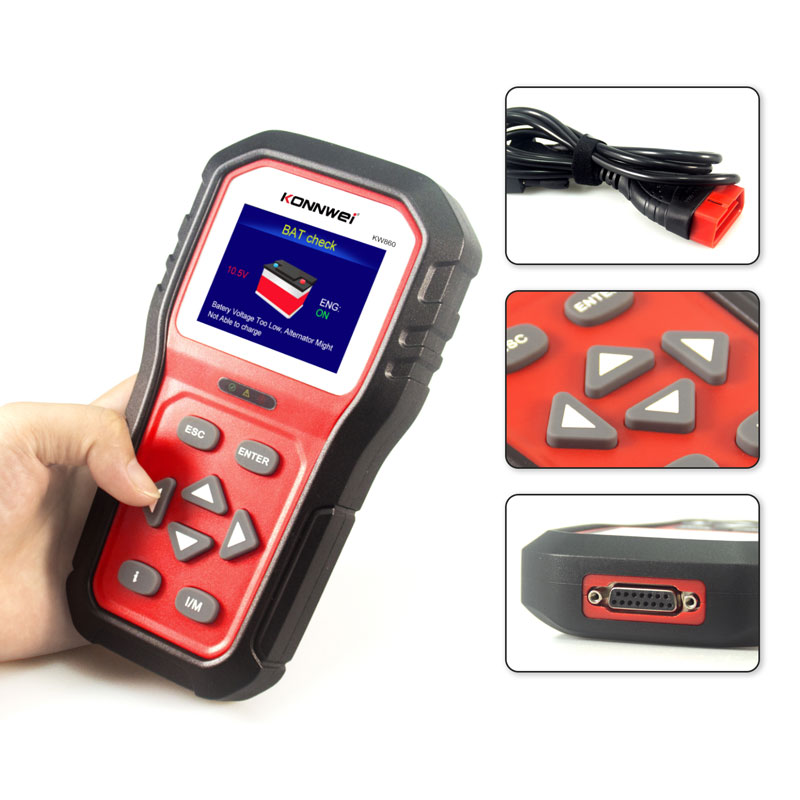

Reason 4. Featured battery real-time monitoring during diagnostics, avoid un-expected happened.



Reason5. Intergrated memory card allows storage of Trouble Codes, Live Data and freeze frame, Playback and review data when out of vehicles.



Reason 6. Data printable through USB cable, allows modify and print-out storaged data.



Reason 7. Internet upgradable via usb port, adapted to Windows XP- Windows 10.





1. Please press and hold any button of KW860 scan tool, then connect the scanner to PC with USB cable included in the package, the screen will be turned to "UPDATE MODE"



Notice: Please turn off anti-virus software when installing the update tool, otherwise it will not be able to install the driver properly. the Update tool can be found from www.itoscanner.com (refer to user manual)



2. download and Install the "uplink" program to your PC( Windows xp- 7 only), you will find the below page, All you need is one-click, the program will search the update from our server, download and upgrade it by itself. No need any other operation, save the time and money.



3. Wait for the update process finished, the scanner KW860 will be ready to go! we will update to latest version before shipping out, normally there is no need to update for a long while.





1. After install the "uplink" program on PC, connect the scanner to PC with USB cable. (No need to press any buttons)



2. Launch the program"uplink" ,  Select "Print" option.



3. Operation on scanner:  go to main menu, select " Print Data" ; Select the data option that you want to print to PC,



4. After select the "print data", the data stream that storaged in the scanner will be sent to PC software, you may modify them before printing them out from PC's printer.





Support Protocol: ISO 9141, KWP2000, SAE J1850, CAN,J1850 VPW,J1850 PWM, support system: XP WIN7 WIN8 WIN10.

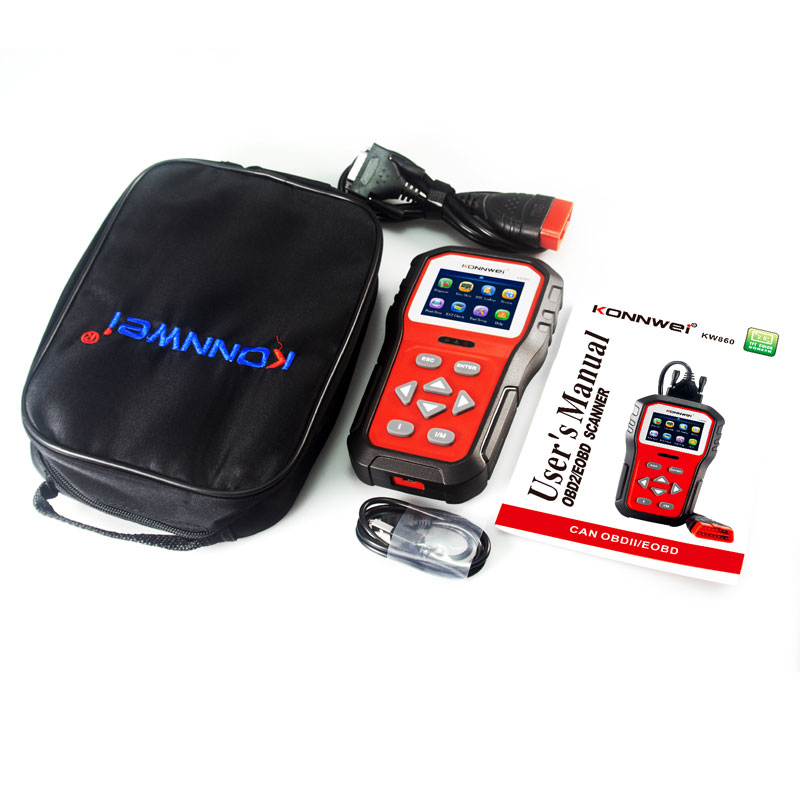

1*KONNWEI KW860 Auto Diagnostic Scanner



1*User's Manual in English



1*OBD2 Cable



1*USB Cable



1*protective nylon bag
