Professional Elm327 Interface Bluetooth Obd2 Torque Android Scanner KW902

 Item size( cm):

package size (cm):12*7.5*4
Item Net weight(kgs):0.048
Package Gross weight(Kg):0.1
qty/cn: 100pcs/ cn,
Carton size : 39*25.5*36cm,
Carton Weight :10.65kg/carton
Product Description

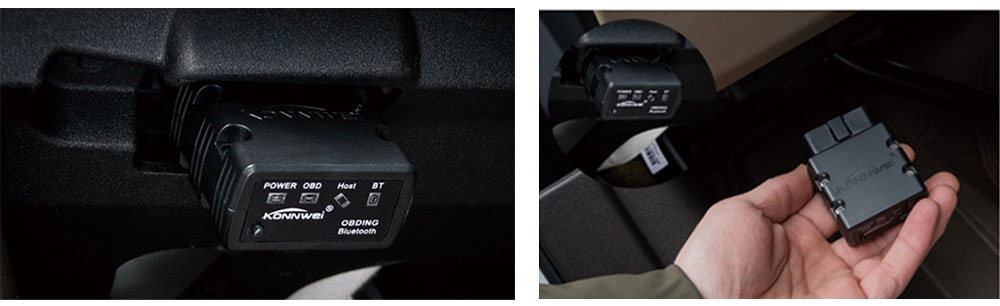

 KW902 Android car scanner Bluetooth 3.0 automotive diagnostic tool engine analyzer KONNWEI BRAND









             With kw902 you will be able to perform a complete computer diagnostics car and even to correct minor faults without resorting to service stations. KW902 scantool is a high-quality automotive scanning tool, supports all OBD-II





Feature:

* Supply voltage(VDD):12V

* Work temperature range: -20 ~ +70C

* Storage temperature range:-40 ~ +125C

* RF sensitivity(Basic Rate): -85db

* Modulation Mode:GFSK

* Frequency Range:2402 ~ 2480MHZ

* Transmission Range:10M

* Bluetooth Profile:SPP

* UART Params:38400,8,n,1

* Small size, compact structure. Plug and never unplug

* Stable wireless connection

* No wires or batteries (adapter is powered by the diagnosis size sockets)

* Stop communication, wait half an hour, auto sleep

* Supports all OBDII protocols

* The adapter uses the fastest and most reliable ARM chips

*  Measure the fuel consumption.

*  Display real-time operating performance of the car, such as momentum,vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors,   air intake temperature, and more.

* Turn off the MIL (signal Check Engine).

* Download data to external media in a variety of formats for later printing.

* Record various parameters, display graphics in real time, and more.



protocols :

0.Automatic

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

A.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

*default settings(user adjustable)





Packing info:

Item size( cm):
package size (cm):12*7.5*4
Item Net weight(kgs):0.048
Package Gross weight(Kg):0.1
qty/cn: 100pcs/ cn,
Carton size : 39*25.5*36cm,
Carton Weight :10.65kg/carton



5 Color choice   : White/Red/Green/Orange/Black
